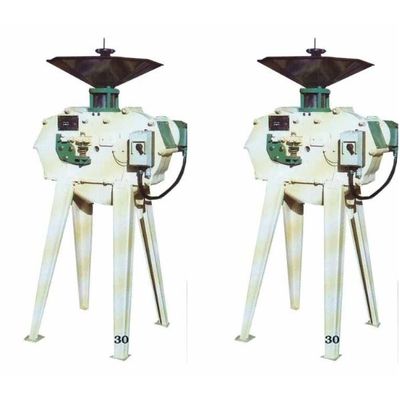

Model M201 -Cold Cereal Crusher Roller
The model M201 is provided for an hourly production rate of about 70-120 kg/h. This model is manufactured using 2 cylinders obtained by melting of cast iron, having a diameter of 300 mm, with working width of 100 mm. The use of the cylinders with the smallest diameter, for this model, involves an hourly production rate reduced, with an efficiency of 50% less compared to models LAM900.(In fact cylinders with a diameter of 900mm and the width of the face profit of 100 mm would allow an hourly production rate of 673kg/h). However, the use of the cylinders to small diameter allows to obtain hourly productions are satisfactory for the demands of small farmers, with a cost of the machine greatly reduced
The cylinders are supported by two shafts in special steel hardened high resistance, largely oversized to give the machine a great reliability, keyed by forcing, of the removable type, without the use of any type of welding process (since the welding techniques applied to this group, might induce in time to breakage due to phenomena of fatigue). On these shafts are fitted with two pairs of supports of the oscillating ball. A cylinder is made integral with the base carrying the machine (fixed cylinder); the other is housed in such a way as to allow a rotation with eccentric away. The base is made of cast iron and is constituted by two shells, largely oversized, which confers to the mill remarkable rigidity, allowing a lamination of high quality.
Cylinders are mounted on these our models are kept under pressure from two springs that allow the cylinder to be able to detach if entered the hard bodies so as to safeguard the surface of the cylinders.
Also in this way it is possible to obtain the self-regulation of the thickness of the rolled product, in function of the hourly production, adjustable by means of a guillotine-type shutter which feeds the machine, located in such a way as to distribute the cereal grains over the entire width of the laminating cylinders and so as to be hardly blocked by foreign bodies (stones, etc.).
Cereals finished treatment in Cereal Crushing Roller cold undergoes a gelatinization approximately 20%.
The reception of the product is crushed in a tank to open bottom that conveys the product in the center of the earth.
These Cereal Crushing Roller are produced in a fixed and shall be accompanied by a threephase electric motor (or single phase), by a switch to operate, by a pin for connection to the electrical network. The installed power on this model are the following:
MOD. M201 : 1 engine : 1.5 KW (2HP)
