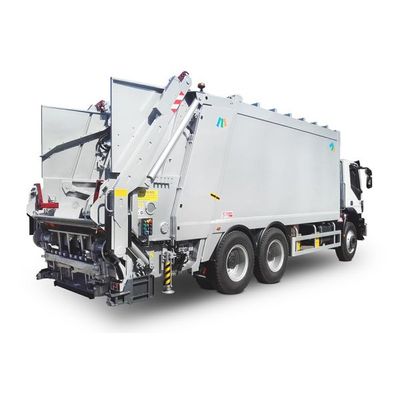

Model MAC 1 -Single Bladed Rear Loading Compactor
The Mac1 is a rear-loading compactor specifically manufactured for a line of “Heavy Duty” chassis, 6×4 and 8×4 versions. It contains a sealed waste container and universal rear-hinged hopper. It is particularly suitable for coupling with satellite vehicles and for high load requirements, guaranteed by the MAC patented system.
Most popular related searches
rear compactor
bin lifting
compaction system
disinfection system
weighing system
fleet management
drain valve
container weighing system
hose reel
sewage tank
- The Mac1 compacting system with articulated plate moves on two outer upper tracks and two lower rods, in order to obtain a high structural strength and compression capacity. The cylinders that operate the system are made of tempered and chrome plated stems; and those of the compacting trolley are located outside the tailgate, sheltered from waste and easily accessible for maintenance.
- Unloading of the waste through an internal bulkhead; counter pressure of the bulkhead’s expulsion is controlled hydraulically and adjustable.
- Advanced electronic control of the hydraulic system, which guarantees the functionality and safety of the equipment according to the highest standards, with interface for data communication.
- Bin lifter equipment and rear-fooboards are manufactured according to EU laws and regulations and standardized with all of Mazzocchia’s line of rear equipment.
- The control panel in the driver’s cab is rear-lit, touch screen and displays different colours according to the work situation
- Safety controls and devices are pursuant to Machinery Directive and to UNI EN 1501.
- Body volume: from 25 to 36 m3
- Type: rear compactor with tailgate
- Compacting system: articulated single-bladed plate
- Unloading system: ejection plate
- Working system: hydraulic
- Bin lift with standard connections
- Shovel and broom holder
- Rear footboards for two operators
- Rear flap for manual loading or coupling with satellite vehicles
- Compacting ratio adjustment
- Rear camera
- Touch screen panel in the cab
- Rotolamps
- Working light
- Sewage tank
- Drain valve in the hopper
- Bags loader (integrated with bin lift)
- Customizations on a specific request
- Skip lift
- Disinfection system
- Washing system with hose reel and gun, manually operated
- Greasing system
- Weighing system
- Containers Identification System
- Perimeter video system
- Fleet managment
- Maintenance Servic
