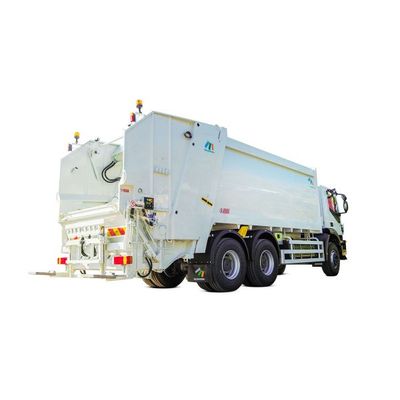

Model MAC 2NB Series -Single Bladed Rear Loading Compactor
MAC2NB is a rear compactor suitable for heavy chassis, three axles. It contains a sealed waste container and universal rear-hinged hopper. The patented MAC compacting system with articulated plate moves on two outer upper tracks and two lower rods (MAC2NB), in order to obtain a high structural strength and compression capacity. The cylinders that operate the system are made of tempered and chrome plated stems; and those of the compacting trolley are located outside the tailgate, sheltered from waste and easily accessible for maintenance.
Most popular related searches
rear compactor
compaction system
bin lifting
waste containment
waste container
electronic-controlled hydraulics
bin equipment
workplace safety
workplace safety system
safety system
- Unloading of the waste through an internal bulkhead; counter pressure of the bulkhead’s expulsion is controlled hydraulically and adjustable.
- Advanced electronic control of the hydraulic system, which guarantees the functionality and safety of the equipment according to the highest standards, with interface for data communication.
- Bin lifter equipment and rear-fooboards are manufactured according to EU laws and regulations and standardized with all of Mazzocchia’s line of rear equipment.
- The control panel in the driver’s cab is rear-lit, touch screen and displays different colours according to the work situation
- Safety controls and devices are pursuant to Machinery Directive and to UNI EN 1501.
Main Characteristics
- Body volume: from 20 to 25 m3
- Type: rear compactor with tailgate
- Compacting system: articulated single-bladed plate
- Unloading system: ejection plate
- Working system: hydraulic
