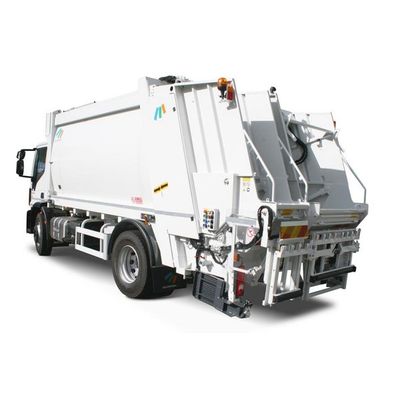

Model MACB DUAL Series -Rear Double Chamber Compactor
The MACB DUAL compactor contains a vertically partitioned body in order to collect two different types of waste. The rear part of the body is closed by two tailgates with all of the compacting devices for loading. Compacting system with articulated single-bladed plate, MAC patent, with upper guides and lower rods. The unloading operations of both sections are independent, so as to guarantee that different waste are completely divided.
Most popular related searches
rear compactor
bin lifting
compaction system
compactor container
electronic-controlled hydraulics
hydraulic bin lifting
workplace safety
workplace safety system
bin equipment
safety system
- Depending on which version you have (symmetrical or asymmetrical), it is also possible to add a bin-lifter up to 1100 litres.
- Advanced electronic control of the hydraulic system, which guarantees the functionality and safety of the equipment according to the highest standards, with interface for data communication.
- The control panel in the driver’s cab is rear-lit, touch screen and displays different colours according to the work situation
- Safety controls and devices are pursuant to Machinery Directive and to UNI EN 1501.
- Unloading of the waste through an internal bulkhead; counter pressure of the bulkhead’s expulsion is controlled hydraulically and adjustable..
Main Characteristics
- Body volume: from 12 to 18 m3
- Symmetric or asymmetric section of the body
- Type: rear compactor with tailgate
- Compacting system: articulated single-bladed plate
- Unloading system: ejection plate
- Working system: hydraulic
Standard Equipment
- Bin-lifter standard attachments up to 1100 litres
- Rear footboards
- Possibility of dividing waste proportionately or by 2/3+1/3
