Model MAL 2150 -Vacuum Trucks & Trailers-Aluminum MAL Series

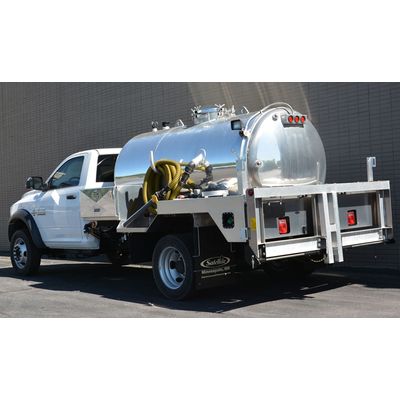

This large capacity truck is configured to provide drivers a less strenuous means of servicing restrooms by placing the work station and wand, at a lower level for easy access and less lifting. It has a large aluminum split tank that holds 1600 gallons waste/550 fresh.
A quick opening manway is located on the waste tank and a side ladder leads to the top manway for easier inspection, repair or cleaning. A round sight glass on the waste tank and sight tube on the fresh shows the level in each compartment. The catwalks and two cabinets are made of strong 1/8” inch aluminum that will maintain a clean, polished appearance. Each side cabinet has a keyed lock and shelving to provide a dry storage area for supplies. For driver safety, a DOT safety equipment package is provided and includes a flag and reflector, first aid kit and fire extinguisher.
- Design: 1/8” Aluminum side panels with one aluminum locking cabinet on each side. Cabinet and side panels are bolt-together construction.
- Finish: Bright Aluminum
- Self-supporting
- Recess-mounted tail, back-up and marker lights
- Female half of six-pin connector flush mounted
- Trailer and safety chain hookup
- Locking pin to hold unit hauler in position
- Fold up design holds two units
- License plate holder
- 36" x 30" x 24" cabinets both sides
- 1/4” aluminum catwalks and cabinets
- Round sight glasses waste, sight tube fresh
- Rubber dock guard on rear of catwalks
- 20” quick opening manway in waste
- Ladder to gain access to top manway
- DOT safety equipment package (flag and reflector, first aid kit, fire extinguisher)
Features:
- Service hose 30` (others optional)
- Electronic fast idle system (chassis option)
- Pump oiling system
- Primary overflow valve (in-tank design)
- Secondary check valve (in-line design)
- Exhaust muffler/Oil catch
- Vacuum gauge (cabinet mounted)
The service module features a PTO driven vacuum system for pumping waste and a gravity flow chemical system for recharging the restroom with fresh chemical.
Pumping System
- Standard Pump: Masport HXL4V pump with pressure dump
- Standard Pump Drive: PTO with torque overload protection
- Optional Pump: Masport HXL75V pump with pressure dump
Moro stainless steel (Medium pressure wash down system)
- 20 Gallon per minute pump 30 PSI with solenoid and pressure switch run by 1 HP Leason motor
- 100 amp circuit breaker and #4 electric cable
- 25’ garden hose and sprayer (optional hose reel)
- Hose hook
- 1000 PSI 4.7 GPM Piston style pump powered by 1 hp Leason motor
- 100 amp circuit breaker and #4 electric cable
- 50’ high pressure hose with special spray wand (optional hose reel)
- Vacuum hose length options
- Pressure wash systems
- Dump hose length options
- Right hand service
- Three compartment tanks (requires extra lead time)
- Ford, Freightliner, Sterling, Peterbilt chassis options, (requires extra lead time)
