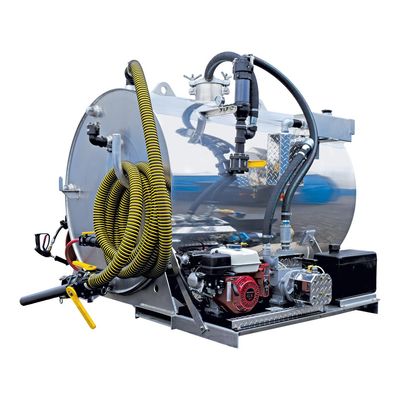

Model MAL650 -Aluminum Skid Mounted Vacuum Units
With a total volume of 2450 litres, the MAL650 is an ideal module to mount on a 5.5t + truck. Its waste capacity of no less then 1600 litres will be sufficient for most daily routes and come in handy on events as well. We can supply the MAL650 with Honda engine or hydraulic drive.
Most popular related searches
high-pressure washing system
pressure washing system
high-pressure hose
high-pressure washing
washing system
pressure washing
hose reel
ball valve
vacuum pump
oil separation
- Material, Aluminium 5454
- Type ‘tank-in-tank’ 2 chamber
- 2 Zinc Anodes
- Easy Fix mounting system
- Primary ball valve
- Manhole 8`` (DN200)
- Secondary ball valve with 1½’’ (DN40) drain
- Oil separator with drain
- Heavy duty, UV-resistant hoses
- Honda GX160 electric start (MAL650, MAL650LP, MAL650HPe)
- Honda GX200 electric start (MAL650HP only)
- 12V Battery (MAL650, MAL650LP, MAL650HP only)
- Vacuum pump Conde 2.000 l/min
- External oil tank for vacuum pump
- 2 Sight glasses for waste water level
- 3`` (DN80) Waste inlet (with 2`` connector)
- Sight tube for fresh water level
- 1¼’’ (DN32) Bucket-fill
- 3`` Waste outlet with 3`` Camlock couplers
- Low pressure washing system (MAL650LP only)
- Electric waterpump (19 l/min)
- Waterfilter
- 10m of 1/2`` hose stored on hook
- Spraygun with adjustable nozzle
- Electric High pressure washing system (MAL650HPe only)
- Leeson 1hp electric motor
- External battery needed
- CAT HP Pump 4DX27, set at 9.5l@85b
- 15 liter soapdispenser
- 10m of HP hose, stored on hook
- Short spraygun with adjustable nozzle
- Beltdrive High pressure washing system (MAL650HP only)
- Electric clutch to disconnect HP pump
- CAT HP Pump 3CP112, set at 12l@140b
- 10m of HP hose, stored on hook
- Short spraygun with adjustable nozzle
- Suction hoses
- 2"x7.6m
- 2"x9.1m
- 2"x12.2m
- 2"x15.2m
- 2"x18.3m
- Dump hoses
- 3"x1.5m
- 3"x3m
- High pressure hose reel ABS (MAL650HPe and MAL650HP only)
- High pressure hose reel Stainless (MAL650HPe and MAL650HP only)
- Vaporizer to eliminate odour
- Performance Pack
- Honda 9hp instead of Honda 5.5hp
- Conde 6SDS vacuumpump 3.250 l/min
- Hydraulic drive kit
- Hydraulic oil tank
- Hydraulic motor for vacuumpump
- Dimensions: 2250 x 1850 x 1750 mm (L x W x H)
- Dimensions (MAL650HP only): 2250 x 1770 x 1750 mm (L x W x H)
- Dimensions footprint: 2350 x 1950 mm (L x W)
- Dimensions footprint (MAL650HP only): 2350 x 1870 mm (L x W)
- Total Volume: 2450 L
- Waste Capacity: 1600 L
- Clean Water Capacity: 850 L
- Dry Weight* MAL650: 460 kg
- Dry Weight* MAL650LP: 470 kg
- Dry Weight* MAL650HPe: 475 kg
- Dry Weight* MAL650HP: 485 kg
