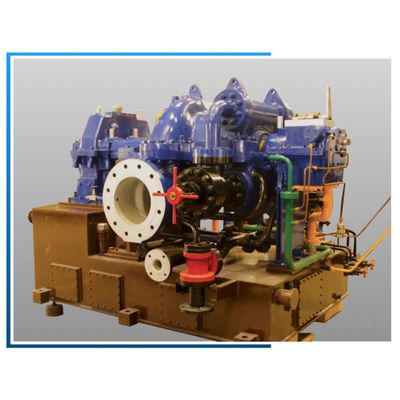

Model MBT- 6 -Multi Stage Back Pressure Turbine
The MBT- 6 is a proven workhorse and the backbone of many medium sized plants across the globe. These turbines are now completing more than 20 years in reliable operation and have undergone constant improvement over the years. They offer the most efficient co-generation architecture, along with provisions for High pressure-controlled extraction.The turbine is provided with a combination of throttle and nozzle governing. The combined frame ensures the turbine, gearbox and all associated piping are skid mounted on a single frame. The use of an integrated governor/actuator easy replaceability, upgradation and compatibility with existing plant layout.
Most popular related searches
Suitable upto 69 Bar (a) Inlet Pressure.
- Highly Reliable and extremely rugged workhorse.
- Standardised Machine ensures off the shelf spare part availability.
- Upto 5 stages and 9000 RPM For Maximum Efficiency.
- Critical speed above rated operational speed ensures ease of startup and operation.
- Turbine driven governor ensures no Requirement for Control Oil system.
- Suitable for operation with Woodward and Regulators Europa make Hydro-Mechanical and Electronic Governors.
- Complete Labyrinth type steam seals.
- Manually operated Throttle Governing for optimised part load operation.
- Suitable for Mechanical drive Operation.
- Provision for externally controlled extraction upto 19 bar.
- Horizontally Split Steam casing ensures easy inspection of the internals without disturbing the steam line.
- Meets API 611 Specifications.
