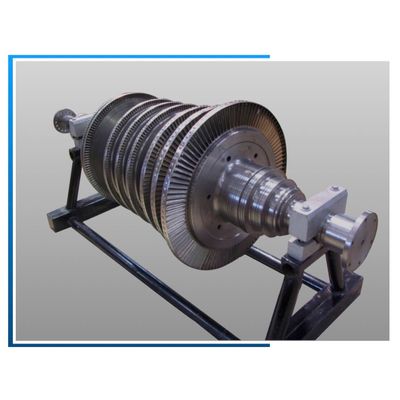

Model MBT- 8 -Multi-Stage Back Pressure Turbine
Our latest offering caters to large cogeneration plants. The robust and independent control system offers operators with a large degree of flexibility. This power turbine is paired with water cooled CACW Alternators from reputed makes. It is commonly used in the sugar, rice, textile, chemical, and paper industries.The all-Rateau design ensures superior efficiency compared to other back pressure turbines, often eliminating the requirement for an extraction condensing system. The future proof and independent control system offer direct acting actuators and can be fully customised.
Most popular related searches
vibration monitoring system
water cooling
vibration monitoring
control valve
pressure control valve
labyrinth seal
cooling water
vibration control
Fully electronic, direct actuated control system ensures fly-by-wire operation.
- Suitable for operation with Woodward 505 XT and Voith DTc Electronic governors.
- Independent control oil system ensures long life and reliability.
- Upto 7 stages and 10250 RPM For Maximum Efficiency.
- Critical speed above rated operational speed ensures ease of startup and operation.
- Suitable upto 69 Bar (a) Inlet Pressure.
- Multiple inlet control valves for Part load Nozzle control.
- Standardised vibration monitoring system.
- Mechanical and electronic protections for low oil pressure and overspeed.
- Complete Labyrinth type steam seals.
- Provision for externally controlled extraction upto 37 bar.
- Meets API 611 Specifications.
