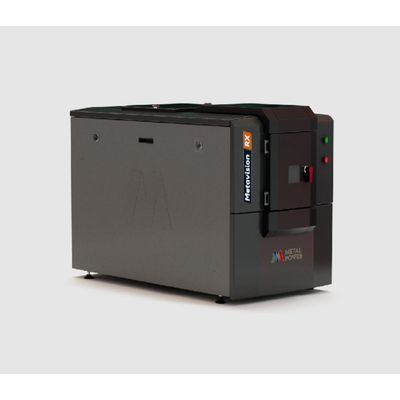

Model Metavision-RX -Rotating Disc Electrode (RDE) Spectrometer
The Metavision-RX is a Rotating Disc Electrode (RDE) spectrometer designed to meet the highest level of analytical requirements when it comes to oil analysis. It’s fully CMOS/CCD optics use the latest generation ultra-high resolution CMOS/CCD detectors to perform fully quantitative determination of metallic elements in oils and lubricants. With its compact and rugged design, the unit delivers exceptional accuracy and precision combined with low detection limits, while not compromising on economy. Capable of analyzing 33+ elements with detection limits down to 0.01 ppm, this RDE Optical Emission Spectrometer is ideal for a wide range of quality-conscious users.
Optics
- Multi-optics system using latest-generation, high-resolution detectors
- Wavelength range: 165-800 nm
- Focal length of up to 400 mm
- Gratings of 2,400 gr/mm & 3,600 gr/mm
- ermally stabilized optics to ensure high precision and stability
Source
- Digital Source; 90-270 VAC; 50/60 Hz
The Metavision-RX is the ideal solution for condition monitoring programs aimed at detecting wear of system components or potential points of ingress for contaminants into the system through detection of wear metals, contaminants, and other impurities in lubricating oils, engine oils or coolants. is analysis, coupled with knowledge of the system design, allows for precise identication of problems, implementation of mitigation measures, and helps to prolong the life of the equipment.
