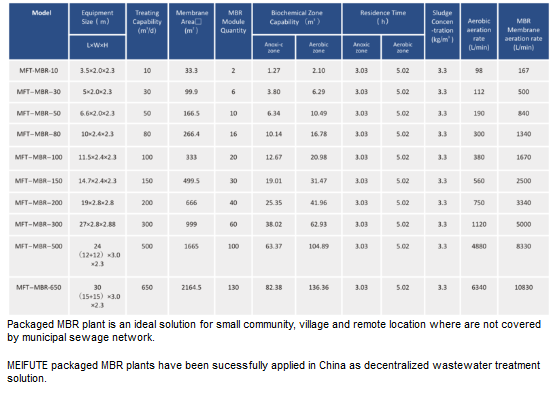

Model MFT - Packaged MBR Wastewater Treatment Plant
From Flat Sheet MBR
Unlike conventional A/0 treatment requiring final sedimentation tank to separate sludge and water, MBR system keeps sludge and large dissolved comtents in wastewater so that activated sludge concentration (MLSS) in MBR tank can be increased to 1200(M5000mg/L, hydraulic retention time (HRT) up to 6-8 hours: sludge retention time (SRT) is extended to more than 60 days.
pH 6-9, SS 20-70mg/L, the effluent from MBR system flow into disinfection system. After UV disinfection, treated greywater can be used for irrigation and landscape.
