Rototilt Group AB

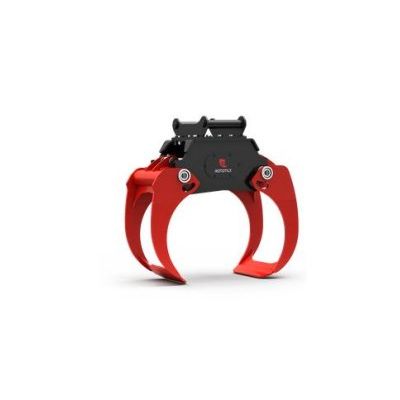

Model MG20 -Grapple
The ultra-strong and durable design of the multi-grapples (MG) makes them the optimum utility tool for operators who want to be able to take on more and complementary assignments.
Most popular related searches
- Accumulators and load-holding valves for maximum safety.
- End position buffering for cushioned operation and minimal wear.
- An impressive grasping ability means even small-diameter objects can be lifted without loss of precision and grip ability.
- Expander pins increase service life and lower service costs.
- Robust chassis, generously dimensioned and optimized for best durability.
- Bucket roof adapted to fit different attachment systems provides inbuilt flexibility. Modular, easily adaptable
- The cutter is manufactured from high-strength steel for maximum durability.
- Double parallel shafts for maximum performance.
- The market`s biggest grapple width means you can use the full impressive clamping force.
- Minimum working pressure 175 bar
- Maximum working pressure 250 bar
- Pressure relief valve 250 bar
- Recommended flow 30 l/min
- Gripping force - arms open 9.5 kN
- Gripping force - arms tip-to-tip 12 Nm
- Max permissible load 3000 kg
- Weight 150 kg
- Grapple area 0.2 m²
- Max grip width 129 cm
- Min. diameter 8.0 cm
- Width 34 cm
- Height, tip-to-tip 82 cm
- Height, max grip width 74 cm
