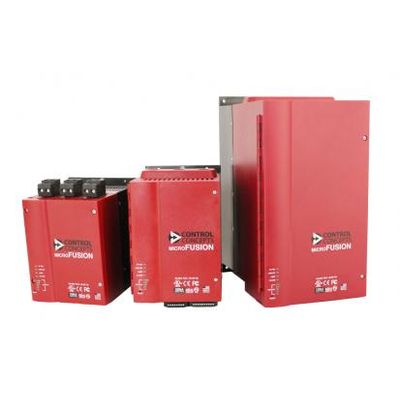

Model MicroFUSION Three Phase -Power Controller

SHARE

MicroFUSION is available with one of two circuit boards. SX is a lower-cost alternative, whereas HX features CCI Link™ and is a fully populated board that can be field-upgraded to include retransmits and other features.

Most popular related searches
RoHS
RoHS certification
SCR control

Status: Actively Shipping - Recommended for new designs

Phases: Three phase

Firing mode: Phase angle, Zero cross, Zero Cross Transformer Mode

Output: AC

Amp Sizes: 8, 16, 32, 50, 80, 100, 130, 160, 200, 240, 320, 400

Voltage: 24-690 VAC (CE), 24-600 VAC (UL), 45-65 Hz

Control: Analog, Digital

Feedback type: Voltage, Current, Power, External

Features: The controller features the following:

  • Auto-ranging input voltage (CE: 24-690 VAC, UL: 24-600 VAC, 45-65 Hz)
  • 16, 32, 50, 80, 100, 130, 160, 200, 240, 320, 400 Amp AC output (at 50° C, 6000 ft)
  • Adjustable soft start
  • UL, cUL, CE, RoHS, 100kA SCCR certifications
  • 4-SCR and 6-SCR configurations
  • Can be ordered as Delta Wye, 4-Wire Wye, and Inside Delta
  • Missing cycle detection
  • SYNC-GUARD and TRANS-GUARD
  • Dedicated RUN/STOP bit
  • Analog interface: up to two analog inputs, two retransmits
  • Fieldbus options: EtherNet/IP, PROFINET, Modbus TCP
  • Easy setup via Plug-n-Play USB
  • Thermistor
  • OEM options (consult factory)

Available options include:

  • General purpose input
  • Second analog input channel (second setpoint, potentiometer input, external feedback, or pulse width modulation (PWM))
  • Alarm relay (form C)
  • 2 x 16 bit analog retransmits (0-10 VDC or 0/4-20 mA)
  • Remote display (2-line, 16-character text display)
  • High performance: True RMS power, load vontage feedback, load current feedback, high resolution control loop
  • Increased accuracy, linearity
  • Current limit
  • External, touchsafe Class T Fusing

Retransmit: Load voltage

Load current

Load power



Limits: Voltage limit

Current limit

Power limit



Alarms: Overtemp

Shorted SCR

Over current trip

Phase loss



Agency approvals: UL

CE

RohS

cUL/CSA

100 kA SCCR

Fusing: 3-Pole Touchsafe Fusekit

Fieldbus Options: Modbus TCP (Ethernet)

PROFINET (Ethernet)

EtherNet/IP (Ethernet)

Options

Control Panel Software

(Free with purchase)

Remote Display Kit

Remote Hand Terminal

USB Cable

** 1-Pole Touchsafe Fusekit only recommended for line to neutral applications.
