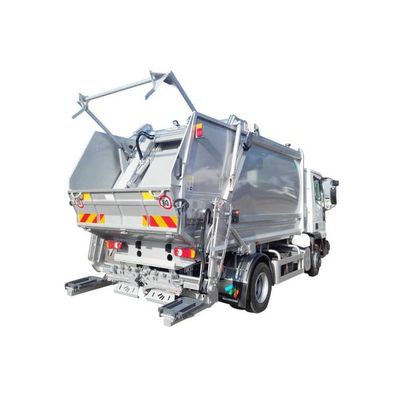

Model MINIMACB Series -Single Bladed Monocoque Mini Compactor

FromFratelli Mazzocchia Spa

SHARE

The MINIMACB is a single-bladed monocoque mini-compactor that offers various technical and functional solutions; the counter-pressure bulkhead assists the performance of the MAZZOCCCHIA compacting system. The MinimacB is suitable for “door to door” collecting; The monocoque body is perfect for the collecting of organic waste.

Most popular related searches

compaction system

electronic-controlled hydraulics

hydraulic bin lifting

waste collection

Safety controls and devices are pursuant to Machinery Directive and to UNI EN 1501.
A highly resistant silicon rubber unit for the rear edge
Adjustable closing-unit for the rear edge, with fastening device
Bin-lifter contained under the body to facilitate the transfer of waste
Possibility to apply a lowered hydraulic turn-bags device
Possibility to unload in higher position with body backing and lifting
Unloading of the waste through an internal bulkhead; counter pressure of the bulkhead’s expulsion is controlled hydraulically and adjustable.
Advanced electronic control of the hydraulic system, which guarantees the functionality and safety of the equipment according to the highest standards, with interface for data communication.
Bin lifter equipment and rear-fooboards are manufactured according to EU laws and regulations and standardized with all of Mazzocchia’s line of rear equipment.
The control panel in the driver’s cab is rear-lit, touch screen and displays different colours according to the work situation

Main Characteristics

Body volume: from 8 to 12 m3
Type: rear compactor “monocoque” type with hopper inside
Compacting system: articulated single-bladed plate
Unloading system: ejection plate
Working system: hydraulic

Standard Equipment

Bin-lifter standard attachments up to 1700 litres
Rear footboards
Unloads into larger vehicle
