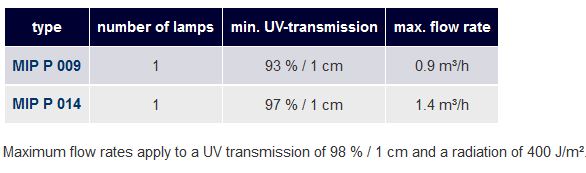

Model MIP P Series -Optimized UV Systems

Stainless steel reactor (material 1.4301) outside electropolished, with quartz tube and UV low pressure lamps (16 W to 25 W). Incl. Switchbox made of thermoplastic and optional UV monitoring unit. Standard flanges according DIN 2642, 2632; DIN 2999 (other flanges optional). Vent and bottom outlet valve sealed with PTFE. Simple handling and maintenance. Modular installation possible. Variable in connections and their arrangement. Horizontal and vertical mounting.
