Model MKS-03D “SWIFT” -Dosimeter Radiometer

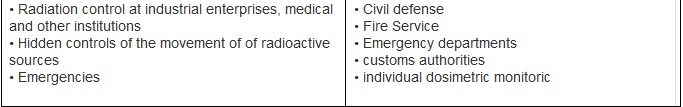

PURPOSE

• Small size portable professional device intended for measuring:
• power of the equivalent of ambient dose H * (10) of gamma radiation;
• equivalent of ambient dose H * (10) of gamma radiation;
• density of beta radiation flow from contaminated surfaces

INDICATORS OF PURPOSE

• Independent measuring channel: gamma-radiation dose power and flux density of beta-radiation
• Continuous measurement with constant specification of the result
• Assessment of the radiological situation by the sound signals (clicks), frequency of which is proportional to the dose power (flux density)
• The result of measurement with any necessary statistical error
• Automatic restart of the device when changing the type of measured radiation while measuring.
• Compensation of the counting rate due to the presence of gamma radiation while measuring flux density of beta radiation
• Indication of statistical error while measuring
• Indication of unit of measurement
• Indication of the level of battery charge
• Backlit panel
• Pocket size

• Sensitivity which is sufficient for correct measurements on the natural background, combined with a high upper limit of dose rate measurement
• Using the device as a personal dosimeter for automated systems fo collecting dosimetric data due to its ability to transmit time-referenced data about the accumulated dose
• Keeping an internal archive of values of accumulated dose in the non-volatile memory - no less than 2000 records, Possibility to set from 1 to 3 values of alarm level limits and there is a sound in case of exceeding these limits, Control and alternation of parameters is performed using keyboard or PC with specialized software

Measurement Range:

• Power of the equivalent of the ambient dose ... ... ... ... ... ... ... .... from 0,1 mSv / h to 0.1 Sv/h
• Ambient dose equivalent ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... from 0.01 mSv to 40 Sv
• Flux density of beta-radiation ... ... ... ... ... ... ... ... ... ... .... ... ... from 12 to 107 min-1 cm-2

• Energy range of registered gamma radiation is. ... ... ... ... ... .... ... from 0,05 to 3,0 MeV
• Energy range of registered beta radiation is from ... ... ... ... ... ... ... ... ... ... .. 0.12 to 3.0 MeV
• energy dependence of sensitivity of gamma-channel in the range from 0.05 to 1.25 MeV is not more than ± 25% relative to sensitivity to the energy of the radionuclide 137Cs

• Limits of the basic relative error of measurement:
• dose rate is ± (20 +2 / Ax)%, where Ah is a numeric measured value
• flux density is ± (20 200 / Ax)%, where Ah is a numeric measured value

• Transferring of measurement results to PC via USB port according to protocol DiBUS
• Operation mode setup time is, ...... ... ... ... ... ... ... ... .... no more than 5 seconds
• Dosimeter is charged by two galvanic batteries or accumulators of AA size
• Continuous operation of the charged set of batteries with the capacity of not less than 2700 mA h is. 700 hours
• Operating Temperature Range is ..from minus 20 ° C to +50 ° C
• Relative humidity of ambient air is ... ... .... ... ... ... ... .. Up to 95% at +35 ° C
• In terms of resistance to climatic factors dosimeter-radiometer refers to Group V2A and on resistance to mechanical factors to group N3 according to GOST 27451

• Capsule protection is not less than IP54
• The designated service life of the dosimeter-radiometer is 8 years

• Warranty period is 18 months from the date of putting into operation or after the warranty period of storage
• Warranty period of storage is 6 months from the date of sale
• Overall dimensions of the dosimeter-radiometer are not more than 111 × 73 × 28 mm
• Weight of the dosimeter-radiometer is not 0,2 kg

Dosimeter radiometer MKS03D "Swift" is registered in the State Register of measuring devices approved for use in Ukraine, at No. U283609
