Model MSO2A -LED Module

FromShine Opto(Suzhou) Co., Ltd.

SHARE

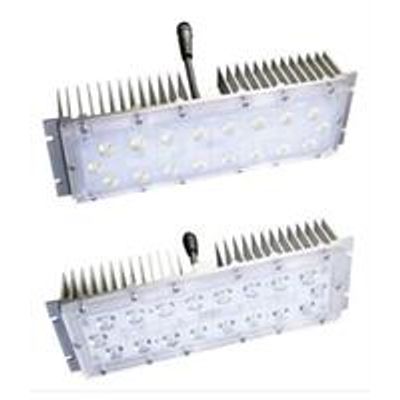

The LED module is developed by the SHINE OPTO R&D engineers team, according to the requirements and development of outdoor lighting market. It has many different optical designs with SHINE OPTO`s proprietary technology, optimized the structure of heat radiation, can widely lower down the Tj, with very high luminous output. It also adopts standard electric connector, which can match customers` different requirements on housing designs.,such as street lights,tunnel lights,spot/flood lights,high bay lights and etc.

Most popular related searches

6063 aluminum alloy material by special processing, conductivity factor reached245W/(M.K)
Aluminium PCB board`s thermal conductivity 2
Rubber cable
304 Stainless steel screw
High efficiency flux lenses
Cree or Philips led,warranty&life span>70000

Size

6063 aluminum alloy material by special processing,conductivity factor reached
245W/(M.K),the Tj is less than 55℃ after heat balance.
The lens use calculus patented technology and Shine Opto special optical material, so that the optical efficiency of the lens can reach more than 99%.
With the unique patent technology, it can avoid causing the difference of the optical effects
from the Lens installation or the influence of the outdoor environment.
Various of beam angle design, suitable for different occasions lighting.
IP68 water proof,can working under water over 3m.
Adopts standard electric connector,can match different requirement on housing designs.
The complete optical designs,can reach the lighting demand of the various optical applications.
