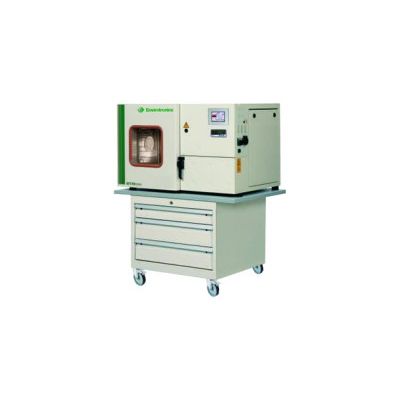

Model MT Series -Mini Temperature Test Chambers
Limited laboratory space and the necessity of installing test systems within the actual workspace are factors that demand compact and silent running equipment. The Envirotronics MT Mini temperature testing chambers are the best choice to fulfill these requirements. The aim of a temperature test is to verify the resistance of a specimen to the environmental influence of temperature. The tests are aimed at the suitability for use and storage at low and high temperatures. In research and development laboratories, the functionality and usability of a product are determined at a very early stage With its MT Mini-series temperature test chambers, Envirotronics provides the development engineer and quality assurance specialist high efficiency in limited space. The test chambers MT 4002, MT 4004 and MT 7004 - our “Minis” - offer an optimum solution with a test space volume of 16 L (0.5 cu ft) and 37 L (1.3 cu ft) when limited space is available
The temperature range of the MT 4002 chamber is -40 °C to +130 °C and the range of the MT 4004 and MT 7004 chambers is -40 or -70 °C to +180 °C. The solid temperature conditioning efficiency (see technical data) renders this compact and yet very quiet series of systems suitable for universal applications.
Key Features:
- Visually appropriate appearance for use in a Lab environment
- Made of reliable, high-quality materials and fitted with the most popular, user-requested features
- Equipped with the powerful S!MPAC Controller with Touchpanel, a 32-bit control system for monitoring and control
- Enhanced performance temperature fluctuations
- Enhanced temperature change rates
- Extremely quiet, ideal for use in a Lab environment
- The mini test chamber MT 4002 is also equipped with a S!MPAC Controller with Touchpanel.
Standard Equipment:
- Potential-free contact for switching-off test specimens
- Independent adjustable temperature limiter
- Adjustable software temperature limiter min./max.
- RS 232 interface
- Observation window with test space illumination 1)
- Entry port 2)
- Holders for shelf
- Air-cooled refrigeration unit
- Calibration of 2 temperature value
