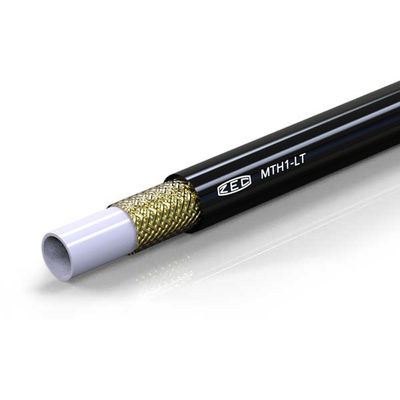

Model MTH1-LT -Thermoplastic Hose - Water-Proof Cover*

Technical-constructive features:
Inner core in thermoplastic polyester, reinforcement in high tensile steel braid and exterior covering in antiabrasion polyurethane stabilized to UV rays and resistant to hydrolysis and micro-organisms, micro perforated on request for the conduction of air and compatible gas.

Working temperature:
from -54°C to +100°C From -65°F a +212 °F.
Max. working temperature of air, water and water-based fluids is +70°C (158°F).

Working pressure:
Safety ratio 1:4

Vacuum rating:
0.93 bar; 700 mm Hg

Specifications:
Hoses meet or exceed pressures under SAE 100R1 - EN 853 1st, 1SN - EN 857 1SC - DNV-GL - MSHA Standards.

*The water-proof feature of the cover means that the hose is especially suitable for wet and saline environments where there are extreme temperature changes.
