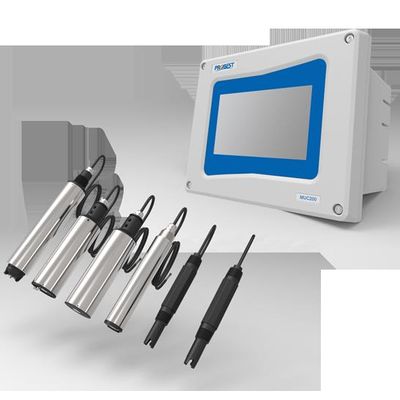

Model MUC-200 -Multi-parameter Analyzer
FromRS Consultancy
MUC-200Multi-parameter controller can achieve on-line monitoring several different parameters by selecting corresponding sensors upon different request.The measured parameters includes temperature,pH,ORP,conductivity,DO,turbidity,sludge concentration,chlorophyll,blue-green algae and etc.Widely used in sewage plant, water plant,water station,surface water,industry and etc.The controller has the function of data storage,and can achieve 4-20mA analog output,relay control and digital communication through the interface configuration and calibration of controller.
Most popular related searches
chlorophyll blue-green algae
blue-green algae
pH/ORP/conductivity
water quality testing system
water quality instrument
multiparameter analyzer
sewage plant
surface water
water quality
water industry
- Can connect any seven sensors of Probest company at the same time.Improve integration and reduce cost of operation and maintanance.
- Strong universality,all the digital-sensor-interfaces are universal,analog sensors configure different modules according to the different sensor types.
- Plug-and-play sensor,quick and easy installation and replacement of electrode.
- Simple operation and reliable result.Operation instructions on the interface can reduce operation error.
- Various data output modes:4~20mA,MODBUS RS485 and etc.
- Automatic message of error and warning,and uploading of warning signal.
- The controller supports wall mounting,panel mounting and clip pipe mounting.
Controller Technical Specifications:
| Display | 7 inch touch screen with LED strong backlight,can operate in direct sunlight | |
| Power supply | 100-240VAC (50/60HZ) | |
| Output | 5-way 4-20mA analog output,programmed response parameter and response value. | |
| Relay | Setting 4-way relays,programmed response parameter and response value. | |
| Communication protocol | Equipped with MODBUS RS485 communication function,real-time transmission of measured values | |
|
Main Material |
PVC(Cover);Aluminum alloy(Lower casing) |
|
| Storage Temperature | -20 – 70? | |
| Operation temperature | -15 – 60? | |
| Protective rate | IP65/ NEMA4X | |
| Dimension | 260mm*200mm*132mm(L*W*H) | |
| Weight |
|
