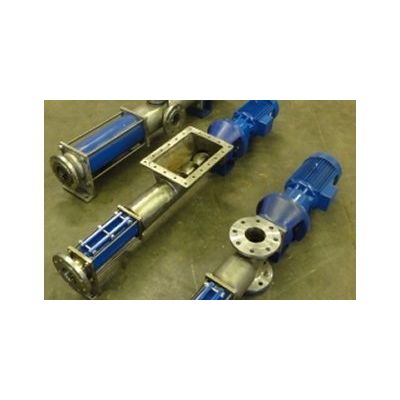

Model N 80 -Screw Pump

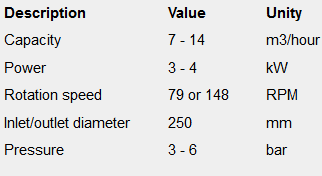

A standard model screwpump, is the N80. This pump has a standard capacity of 7 – 14 m3/hour. This pump is suitable in a one stage, or two stage model. The capacity can be much higher (see graphic attached), but with low capacity, this pump is highly suitable for high viscosity materials. There can be variation in inlet and outlet diameter. Also the inlet can be made as trough and pumped via a mortar into the eccentric displacement pump. Depending on the viscosity and dry matter of the product, we can select you the right pump and engine needed. See table for most common pump details.
