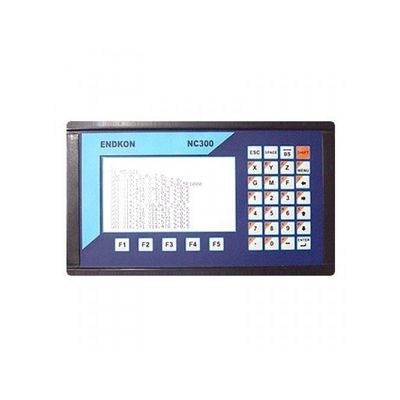

Model NC300 -CNC Control Unit
3 axis CNC control unit works with ISO G CNC codes. Can be used with servo motor or stepper motors. Works with CNC Codes. Cnc codes can be loaded from the PC to the SD card or via the RS232 port of the computer.
Physical Properties
Type of Device: CNC Control Devices
Device Size: 23,13,7 SM
Weight of Device: 720 gram
Storage Temperature / Operating Temperature: -20 C to +60 C
Storage Humidity / Operating Humidity: 90% max. (None condensing)
Installation: Fixed installation
Operating Conditions: Continuous
Environmental Ratings: Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.
Device Supply Voltage and Power: 12 - 24 VDC
Accuracy: +-%1
Sensor Break Protection: Upscale
Reading Frequency: 600 ms
Input Resistance: 1k
Outputs: Relay, 0-20 mA and 0-10 V
Analogue Output: 0-10v
Electrical Life: 50.000 Operation - Full Load
Display: LCD
Standard Communication: RS232 ve RS485
Input: 20 pcs PNP type 12-24 VDC input with optoisol (can be increased with I / O module)
Output: 6 STEP DIR outputs
Compliant Standards: CE, TSE
Usage Areas
CNC router, laser cutting, plasma cutting, styrofoam cutting, CNC spot welding machine, special CNC applications
