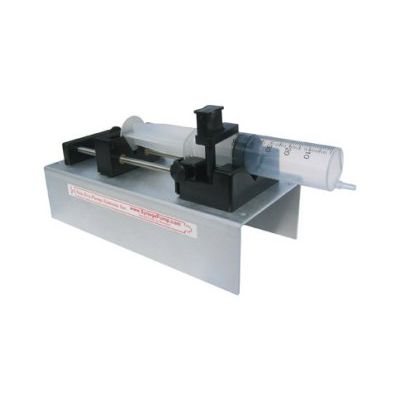

Model NE-500 -Programmable OEM Syringe Pump
Computer controllable: networkable up to 100 pumps. Stand-alone operation: pre-program the pump with a dispensing program, then operate the pump from an attached Foot Switch, button, or I/O controller. Add the OEM Starter Kit to run as a fully functional, stand-alone pump
- Does not have a built-in user interface
- Chassis mountable: 9 1/2"L x 4"W x 4 1/8"H (24.13 x 10.16 x 10.5 cm) (If chassis does not fit in your system, we make custom designed OEM syringe pumps to accommodate your specification needs.)
- Operates from a 12V DC power source
- Holds 1 syringe up to 60 cc
- Infusion rates from 0.73 µL/hr ( 1 cc syringe) to 2100 ml/hr (60 cc syringe)
- Includes all the advanced functions and programming features of the NE-1000 family
- Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately
- Download free pump terminal emulator or check out
- a Free 30-Day Trial of our Windows based SyringePumpPro
- Custom modifications to the mechanics and firmware are also available
- Built for Automation
- Operates from a computer
- Infusion and withdrawal

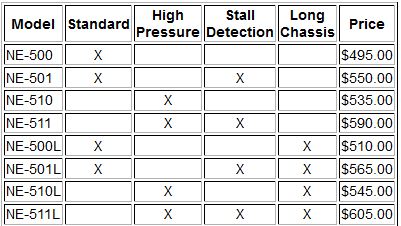

- Available in High Pressure, Stall Detection & Long Chassis options.
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, extra I/O expansion port, sound the buzzer
- Network, control, and monitor up to 100 pumps with one computer
- Motor stall detection available in NE-501 model ($550)
- Dispensing accuracy of ± 1%
- Unlimited lifetime technical support
- Two year warranty
The NE-500 produces about 15 lbs of linear force at top speed and about 35 lbs at slow speeds. 10 ml/hr is an example of slow speed. The pressure that can be generated is relative to the syringe size. On a 60 ml syringe, this would roughly produce about 30 psi
The higher pressure versions will approximately double the pumping force at the same speeds.
Stall Detection
Includes an optical encoder on the NE-500 that will detect and stop the motor during a stall. Typically used in high pressure applications where there is a risk of exceeding the maximum force specified. Without the optical encoder, the pump will continue to cog the event of a stall.
Long Chassis
Will hold and allow 140 ml syringe to open to its full length.
