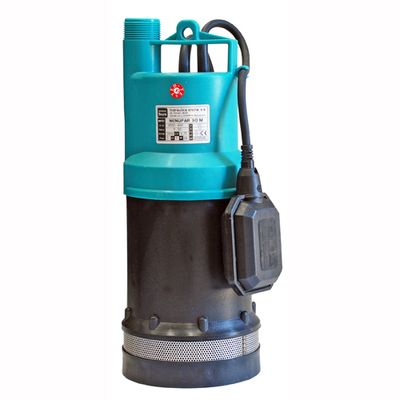

Model NENUFAR -Multicellular Centrifugal Submersible Electro-Pumps
Multistage submersible electro-pump. Designed for the lift of clean water. Suitable for irrigation, pressurization installations and tank emptying.
Most popular related searches
submersible electro pump
submersible pump
cooling water pumping
cooling water pump
water pump
multistage submersible pump
level switch
check valve
cooling water
submersible water pump
TECHNICAL CHARACTERISTICS
- Type: Submersible
- Flow (l/h): 400 - 4800
- Head (m): 5 - 40
- IP: 68
- Isolation: F
- r.p.m.: 2850
- Cooling: Water pumped
- Temp. max. (ºC): 35
- Inmersión max.: 5 m.
- Impeller: Closed
- Max. sand content: 60 gr/m3
- This model is provided with 10 meters of cable with plug, level switch, hose fitting, and check valve.
MATERIALS
- Upper body: Polypropylene PP30FV
- Lower body: Polypropylene PP30FV
- Impellers: Noryl
- Diffusers: Noryl
- Shaft: ‘AISI 304’ Stainless steel
- Motor base: ‘AISI 304’ Stainless steel
- Mechanical seal: Alumina/Carbon-graphite
Note: Minimum distance from the pump to the well bottom should not be lower than 50 cm.
