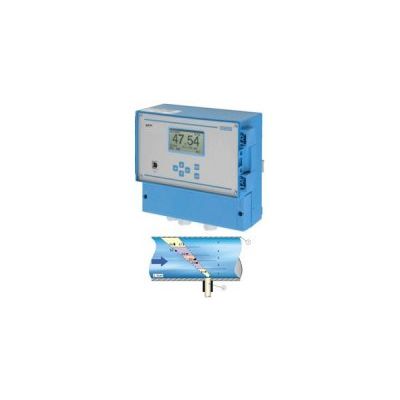

Model NIVUS NFP -Flow Measurement for Full Pipe
The NFP (NIVUS Full Pipe) has been developed particularly for flow measurement in full pipes with diameters between 100 and 800 mm. Based on the cross correlation method, the system can be used in a range of slightly to heavily polluted media. The NFP combines network measurements including adapted area weighting with a flow profile correction.
The NFP is outstandingly suitable for use in:
- Pump stations for rain water, dirty water and combined waste water
- Waste water treatment plants
- Pressure pipelines
- Drainage lines
- Return sludge lines
- Recirculation lines
Power supply 100 to 240 V AC; + 10%/-15%, 47 to 63 Hz or 24 V DC ± 15%, 5% residual ripple.
Power consumption max. 18 VA (7 VA typical).
Wall mount enclosure:
- material: polycarbonate;
- weight: appox. 1620 g;
- protection: IP 65, if lid is closed and locked.
Ex approval (optional): II(2)G [Ex ib] IIB.
Operating temperature -20° C to + 60°C.
Storage temperature -30°C to + 70°C.
Max. humidity 90%, non-condensing.
Display full graphic, back-lit LCD, 128×64 pixels.
Operation 6 keys, multilingual dialog mode.
Input:
- 1 digital input;
- 1 active sensor connectable.
Output:
- 1 (optional 3) x 0/4-20 mA, load 500Ohm;
- 12 bit resolution, deviation less than 0.1% (after calibration);
- 2 relays (SPDT).
Parameter transmission via front-side USB interface.
