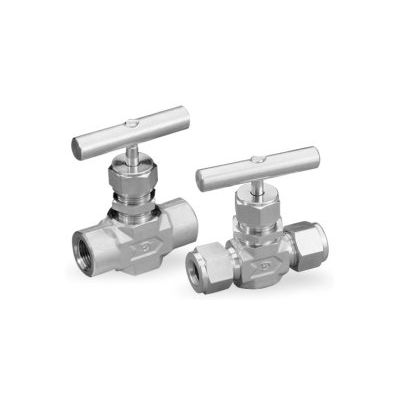

Model NV Series - Integral Bonnet Needle Valves
From Needle Valves
Pressure rating to 5,000 psi (340 bar) at 100°F (38°C). Temperature rating from -65°F to 450°F (-54°C to 232°C) with standard PTFE packing, and up to 600°F (315°C) with optional PEEK packing. Integral bonnet with one piece body is available with straight and angle patterns. Standard panel mounting nut allows easy mounting. Variety of stem tips include vee tip standard, regulating, and soft seat as an option. Size range from 1/8″ thru 3/4″ tubing and pipe. Variety of end connections include Hy-Lok tube fittings, male/female NPT and ISO threads. Standard materials are 316 stainless steel and brass.
