Model OCA15 EC -Entry-level Contact Angle Meter

SHARE
The optical contact angle meters of the OCA series are high-precision measuring systems for the characterisation of interfaces and surfaces. They combine high-resolution optics, pinpoint liquid dosing and precise sample positioning to create powerful measuring systems. The entry-level model OCA 15EC enables basic contact angle measurements and drop shape analyses. Thanks to the modular construction, even this entry-level model can be fitted with many accessories.
Most popular related searches
dosing system
liquid analysis
environmental chamber
humidity generator
table magnet
environmental monitoring
surface analysis
liquid sampling
precision dosing
  • static contact angle (sessile drop method, captive bubble method)
  • dynamic contact angle (roll-off contact angle and needle-in method)
  • analysis of interfacial and surface tension with dispersive and polar parts (pendant drop method)
  • analysis of surface energy with dispersive and polar parts (sessile drop method; manual measuring procedure with several test liquids)
  • analysis of the viscoelastic modulus (oscillating drop method)
  • analysis of the work of adhesion
  • sample table stands on magnetic base for manual horizontal positioning
  • sample table height can be manually adjusted using precision mechanics
  • fast measuring lens with 6.5-fold zoom
  • integrated, stepless manual focus and manually adjustable observation angle
  • video system with USB-3-camera
  • LED-lighting with manual and software-controlled intensity including automatic temperature drift compensation



  • compatible with the SD-DM single direct dosing system with one electronic syringe module
  • compatible with the DD-DM double direct dosing system with up to two electronic syringe modules
  • compatible with FDDS Flexdrop dosing system, which can dose two drops simultaneously with a minimum volume of 25 picolitre



  • upgradeable with different environmental chambers for measurements in the temperature range from -30 °C to 400 °C

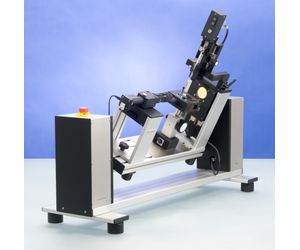

  • upgradeable with the manual tilting table TBA 360 and the electronic tilting unit TBU 100EC
  • upgradeable with a humidity generator of the HGC series from DataPhysics Instruments
  • upgradeable with the external TP 50 control panel with touch screen and precision control wheel
