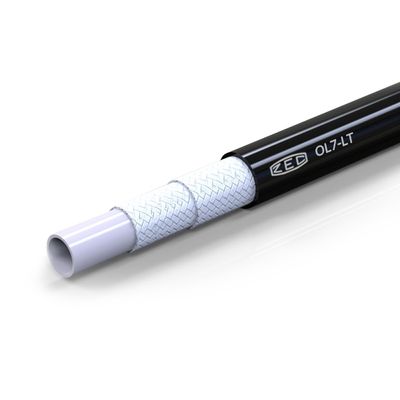

Model OL7-LT -Thermoplastic Hose - Water-Proof Cover

Technical-constructive features:
Inner core in thermoplastic polyester, reinforcement in polyester textile and exterior covering in antiabrasion polyurethane stabilized against UV rays and resistant to ozone, microorganisms and hydrolysis, suitable for outdoor applications in environments having high humidity and saline levels, pinpricked for conduction of air and compatible gases.

Applications:
Hoses of the OL7-LT Series have been created for high pressure hydraulic applications in MARINE environments; this type of hose offers good flexibility at low temperatures and is particularly recommended for operating machines and lift trucks, which work at low temperatures.

Working temperature:
from -54°C to +100°C from -65°F to +212°F. Max. working temperature of air, water and water-based fluids is +70°C (158°F).
Use at low temperature only in static applications.

Working pressure:
Safety ratio 1:4

Vacuum rating:
0.93 bar; 700 mm Hg

Specifications:
These hoses meet or exceed SAE J517 sec. 100R7, ISO 3949 and DNV-GL, MSHA Standards.

**Lloyd`s Register TYPE APPROVAL Hoses.

*The water-proof feature of the cover means that the hose is especially suitable for wet and saline environments where extreme temperature changes occur.
