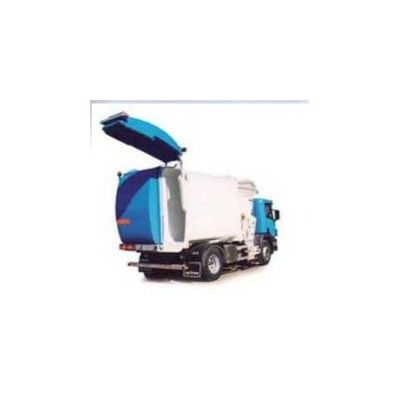

Model OM-2K -Multi-Chambers-Loaders
OM-2K is a fast and reliable two compartment, Automated Side loader. OM-2K is designed in a way that makes it impossible for the two fractions of waste to be mixed.
- Bin lift
- Emergency stop
- Tailgate lowering control fitted to the rear of the body
- Hose break valve for raised tailgate
- Amber beacons, also on the binlift arm
- Vehicle work lights
- Mud guards, mud flaps
- Camera with in cab-monitor for loading and reversing
Volvo FE
- Right hand drive
- Cab: L1H1* or L2H1
- Engine: D7E280
- Chassis height: Medium
- High air intake (AIRIN-HI)
- Horizontal exhaust outlet
- Left fuel tank (220 dm3)**
- AdBlue tank on left hand side
- Electrical interface for bodybuilder (ELCE-CK)
- Transmission: AL306 6-speed automatic
- PTO: PTER-DIN
* 6x2 –3700 only L2H1
** The opportunity of bigger fuel tank depends on wheelbase and extra equipment.
Volvo FM
- Right hand drive
- Cab: L1EH1 or L2H1
- Engine: D9B300
- Chassis height: Medium
- Low air intake (AIRIN-LO)
- Horisontellt avgasutsläpp
- Left fuel tank (285 dm3)*
- AdBlue tank on left hand side
- Electrical interface for bodybuilder (ELCE-CK)
- Transmission: Powertronic 6-speed, 2000Nm
- PTO: PTER-DIN
* The opportunity of bigger fuel tank depends on wheelbase and extra equipment.
Scania P-series
- Right hand drive
- Cab: CP14* or CP16
- With volume mudguard (for CP14)
- Engine: DC9 230 – 310 hk
- Chassis height: Normal
- Air intake: Front
- Horisontal exhaust outlet
- Left fuel tank(200 dm3)**
- Bodywork system, electrical interface for bodybuilder
- Transmission alt.1: GA851 PTO ED120
- Transmission alt.2: GA751 PTO by Scania S-order number: 360344 (< 310 hk engine)
* 6x2 –3700 only CP16 Cab
** The opportunity of bigger fuel tank depends on wheelbase and extra equipment.
Cubic Capacity: 12-17 m3
Body/hopper weight: 500-6000 kg
Body height: 2580 mm
Width: 2550 mm
Length inclusive of hopper: 4800 - 7500 mm
Packing power: 180 kN (18 ton)
Body floor thickness: 4 mm
Hopper floor thickness 8 mm
Bin lift
Work cycle max 25 s
Lifting capacity 2700 N (275 kg)
Reach 2400 mm
Bin size 80 - 660 L
- Heavy duty bin lift; 4500 N (450 kg)
- Automatic replacement of bin
- Auto lube
- Hydraulic oil heater (230 V)
