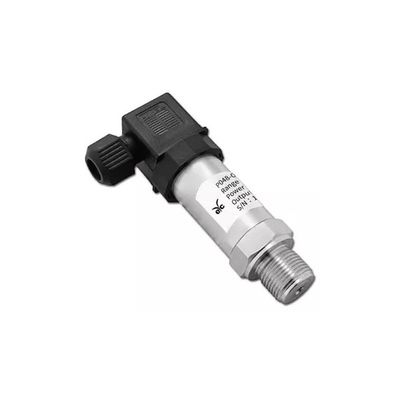

Model P048 -Universal Pressure Transmitter

FromYuden-Tech Co., Ltd. (eyc-tech)

SHARE

316L stainless steel diaphragm structure;High precision, all stainless steel structure. Small size and lightweight;Strong anti-interference, good long-term stability. Diversified formal structures, easy installation and use. Wide measuring range, can measure absolute pressure, relative pressure. Excellent vibration and shock resistance. Zero, full-scale span adjustable.

Most popular related searches

universal pressure transmitter

pressure monitoring

pressure transmitter

HVAC system control

Features:Suitable for various equipment. Easy to install. Various thread options (PT/ G / NPT).
Pressure type:Relative pressure / Absolute pressure
Measuring range:-1 ... 1000 bar
Output:4 ... 20 mA / 0 ... 5 V / 0 ... 10 V / 0.5 ... 4.5 V R/M(DC 5 V)
Accuracy:0.5% / 2% F.S.
IP rating:IP65

Aviation and aerospace / Automotive / Medical equipment / Piping system / HVAC / Process control

Measuring range:-1 ... 0 ... 0.1 ... 1000 bar
Pressure type:Relative pressure / Absolute pressure
Output:4 ... 20 mA / 0 ... 5 V / 0 ... 10 V / 0.5 ... 4.5 V R/M(DC 5 V)
Accuracy:0.5%F.S.;2%F.S.(-0.05 ... 0.05 bar)
Hysteresis & repeatability:0.1%F.S.
Temperature drift:1.5%F.S.(at -20°C ... 85°C)
Response time:≤1 ms(up to 90%F.S.)
Service life:≥10x10⁶ pressure cycles
Environment temperature:-20°C ... 85°C
Medium temperature:30°C ... 105°C
Storage temperature:-40°C ... 125°C
EMC-interference:IEC 61000-6-3
EMC-immunity:IEC 61000-6-2
Insulation resistance:≥100 MΩ / DC 500 V(200 MΩ / DC 250 V)
Mechanical vibration:Sine curve:20 g, 25 Hz ... 2 kHz;IEC 60068-2-6 / Random:7.5 grms, 5 Hz ... 1k Hz;IEC 60068-2-64
Impact resistance:Shock:200 g/1 ms;IEC 60068-2-27 Free fall:1m;IEC 60068-2-32
IP rating:IP65
Medium compatibility:All the medium compatible with 316L
Weight:150 ... 180 g
Size of hexagon:HEX27
O-ring:Viton
Material:S.S.304(Housing) / S.S.316L(Diaphragm)
