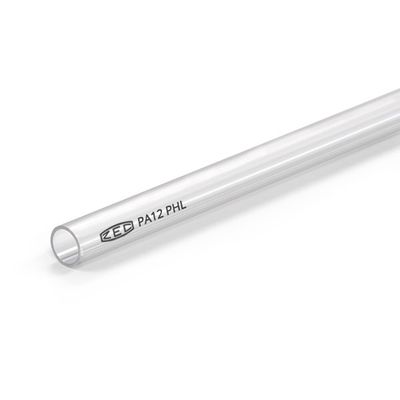

Model PA12 PHL -Polyamide Tubing
Pressure from 7 to 68 bar. Compliant with din 74324, din 73378. Working temperature from -40°c to +100°c. Pneumatics. Low pressure. Air. Paints. Cng/lpg. Fuel. Other gases. Hydraulic oil. Oil/grease for lubrication. Other oils. Water-based fluids. Water.
- Technical-constructive features:
PA12 PHL tubing: plasticized polyamide 12, heat and light stabilized. Reduced moisture absorption. Black color recommended for outdoor applications.
- Applications:
Air conveying in industrial automation and braking systems. Chemicals and hydrocarbons conveying.
- Working temperature:
from -40° to +100°C.
Working temperature of water-based fluids +70°C.
Temperature peaks: max +110°C.
If the duration or frequency of the peaks is significant, the hose lifespan may be reduced.
- Safety ratio:
1:3
- Specifications:
DIN 74324, DIN 73378 depending on diameter size
NB: There is an * in the code. This should be replaced with the color code of the tubing.
EXAMPLE: PA8 6x12 tubing Orange - Code TA86A40.
Black hoses/tubing are recommended for outdoor applications.
Color
Packing
For any further information about the optional items, please contact the sales office (sales@zecspa.com)
- DIN 73378
- DIN 74324
