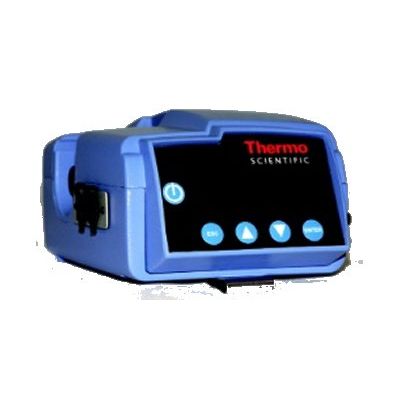

Model pDR-1500 -Aerosol Monitor
Provide real-time results and gravimetric validation with Thermo Scientific™ personal DataRAM™ pDR-1500 Aerosol Monitor, a personal aerosol instrument that offers benchtop performance. This fully integrated, active, volumetrically controlled personal sampling instrument offers greater precision, increased capabilities and decreased size and weight in an easy-to-use package.
From site remediation monitoring to health effects studies to construction/demolition projects, the pDR-1500 provides the power and flexibility to provide both real-time results and gravimetric validation. At 41 oz., it`s as easy to wear it on the belt as it is to run it in a fixed location.
Capable of compensating for all typical environmental variables, the pDR-1500 is outfitted for relative humidity compensation, true volumetric flow, pressure compensation and legacy pDR nephelometry technology. The pDR-1500 aerosol monitor also features interchangeable cyclones for superior particle-cut points available for PM10 & PM4 or PM2.5 & PM1, as well as an integrated sample filter that enables post-gravimetric validation of all data.
Key Features:
- True volumetric flow control
- Full compensation for environmental variables
- Flexible data logging routine
Additional Information:
- Aerodynamic Particle Cut-Point Range 1.0 to 10μm
- Concentration Display Updating Interval : 1 second
- Data Logging Averaging Periods (user selectable): 1 second to 1 hour
- Total Number of Data Points in Memory: >500,000
- Number of Data Tags: 99 (maximum)
- Serial Interface: USB/RS-232, 19,200 baud
- Computer Requirements: PC compatible, 486 processor or higher; Windows™ 95 or higher
Recommended for:
Site remediation
Size discrimination
Mass validation
Exposure modeling
Protection of asthma patients
