Model Pellox -Explosive Pellistor Gas Detector
Explosion detector based on a pellistor sensor. This device is designed to detect concentrations with a predetermined 5% threshold of the LEL (Lower Explosive Limit) which is 0.25% by volume for CH4. It is based on a catalytic oxidation sensor expressly designed for the measurement of combustible gases.
The use of catalytic sensors has several advantages:
- Excellent zero stability
- Linear output
- Short heating time
- Longevity
The device is equipped with an SPDT output and when an “alarm” is active, a visual alarm (red led on the upper part of the housing) and an acoustic alarm are also activated, with deactivation of the relay output.
The relay output is also deactivated if there is a fault in the detector.

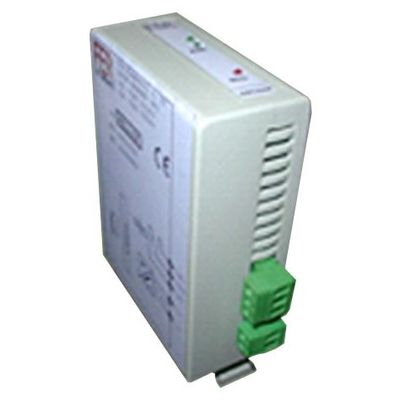

The Pellox is placed in a small and light box to be fixed on a DIN rail and is also equipped with quick and removable connections for a quick and convenient commissioning.
- Signaling: acoustic, visual and relay
- Alarm calibration: at 25% of the LEL (or other calibration upon request)
- Alarm contact: fail safe n.c. SPDT
- Power supply: 18-36 VDC
- Maximum consumption: 5 W
- Maximum current on relay: 1A @ 24V AC or 1A @ 24Vdc
- Dimensions: 80x36x125 mm
- Connections: removable screw-down
