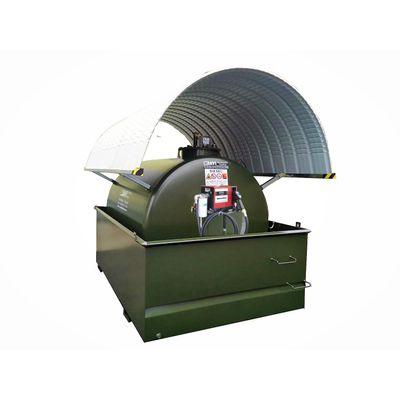

Model PLANET Cube 56 -Single-Walled Tank

• Manhole Ø 400 mm. bolted with oilproof gasket and galvanized bolts having;
• 3 ” inlet pipe with ring nut and bayonet cap in brass, Atex approved, padlockable
• vent pipe with Atex approved flame arrestor terminal in brass
• 3″ load limiting valve to 90% approved
• mechanical level indicator with float
• electrical system according to EC standards with emergency button and key to activate the supply and electric sensor for blocking the minimum level pump.
• bottom drain with safety cap for any periodic cleaning
• access steps to the manhole for comfortable and safe access during refueling (starting from 3.000 liters capacity)
• lifting eyebolts for vacuum handling
• canopy fixing predisposition welded to the tank

Located in containment basin with a capacity equal to 110% of that of the tank itself (as prescribed by the Ministerial Decree 22/11/2017) equipped with support crosspieces for handling with a forklift.
Tank and containment basin are painted in double layer (bottom and dark green finish) with specific products for outdoor use.
