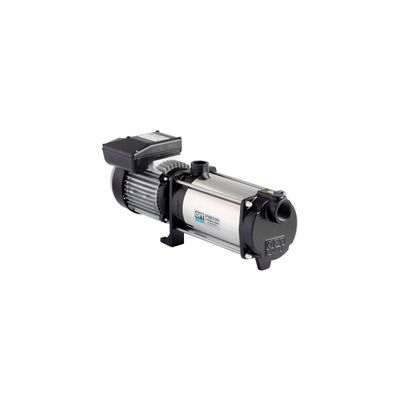

Model Pluristadio -Horizontal Multistage Pump

Features

• Noiseless and reliable horizontal multistage electric pumps.
• Single-phase version with capacitor connected in the condenser holder.
• External pump case and motor shaft in stainless steel.
• Pump body in cast iron.
• Impellers and diffusers in technopolymer.
• Energy saving bearings.

Motor

• 2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation.
• IP44 insulation.
• Working voltage: single-phase 230 V, three-phase 400 V.
• External ventilation.

Working Conditions

• Pumped liquid: clean water, non aggressive, without solid particles.
• The pump can not operate in dry conditions.
• Horizontal operating position.
• Temperature of pumped liquid: min 5°C - max 30°C.
• Environment temperature up to 40°C.
• Maximum operating pressure: 10 bar
