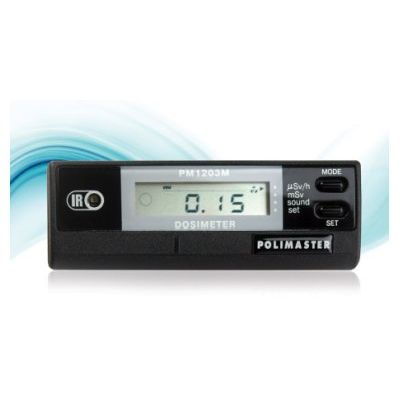

Model PM1203M -Multipurpose Professional Dosimeter
The multipurpose professional dosimeter designed for continuous monitoring of the Gamma radiation environment, as well as for search for the ionizing radiation sources. Polimaster"s PM1203M Programmable Dosimeter continuously measures the ambient dose equivalent H*(10) and dose equivalent rate H*(10). Unlike conventional electronic dosimeters, this low-cost multipurpose dosimeter is highly sensitive to the low levels of radiation and can register the slightest changes in the natural radiation background.
Most popular related searches
gamma radiation
personal radiation dosimeter
ionizing radiation source
dosimeter
gamma radiation monitoring
electronic dosimeter
ionizing radiation
radiation dose monitoring
personal radiation
natural radiation
The PM1203M is designed to provide:
- Continuous measurement of ambient dose equivalent rate of gamma radiation H*10
- Measurement of the ambient dose equivalent of gamma radiation H*10
- Measurement of the time of ambient dose equivalent accumulation
- Indication of time (in hours, minutes and seconds), date, month and year
The instrument`s large and bright LCD screen enables users to view clearly the measurement results.
- Customs and border patrol services
- Emergency services
- Medical professionals
- Personnel of nuclear facilities
- Radiological and radionuclide isotope laboratories
- Mining industries
- Detector: Geiger-Müller tube
- Dose Equivalent Range (DER): 0.01 - 2,000 µSv/h
- DER threshold range: 0.1 - 1999.99 µSv/h
- Step: 0.01
- Dose equivalent (DE) measurement range H*10: 0.01 - 9,999 mSv
- DE threshold range: 0.01 - 9,999.999 mSv
- Step: 0.001
- Range of measurement time of dose accumulation: 1 - 9,999 h
- Accuracy of DER measurement: ±(15 + 1.5/H + 0.0025H)%
- in the range from 0.1 to 2,000 mSv/h: H is the dose equivalent rate, mSv/h)
- Dose Accuracy: ±20%
- Energy Range: 0.06 - 1.5 MeV
- Energy Response Relative to 0.662 MeV (137Cs) within energy range::
0.06 - 0.662 MeV: ±25%
0.662 - 1.5 MeV: ±15% - Response Time: no more than 10 seconds
- Additional Functions: PC communication mode
- Power Supply: Two V357 batteries
- Battery Lifetime: 12 months
- Operating Temperature Range: from -15°C to +60°C
- Dimensions: 125 x 42 x 24 mm
- Weight (with batteries): 90
