Model PMD 2500 -Precision Microwave Transmission Device (patented)
FromIndutech
PMD® 2500 is leading in Microwave Transmission Moisture Measurements. It is able to measure low layers down to 10 mm and high layers up to 5000 mm (dependent on the material) with highest reliability and accuracy. With different sensors the PMD® 2500 is used for a wide range of applications at conveyor belts, chutes, dryers, silos, pipes, etc.. to determine moisture, carbon in fly-ash, density, solid content, consistency, pulp, brix, salt content, etc., New sensors, especially designed for the extreme extended frequency range, enable more and more customized applications.
Most popular related searches
moisture meter
conveyor belt
conveyor belt dryer
microwave moisture monitoring
moisture monitoring
belt conveyor

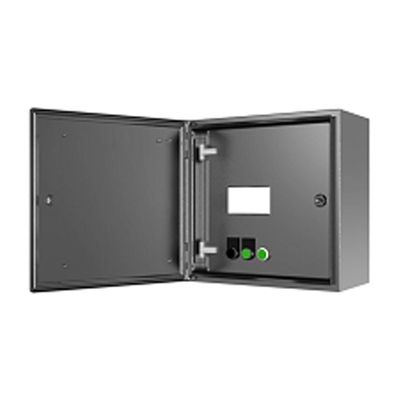

- The modular set-up allows to install the evaluation unit at an ergonomic place with a distance of up to 400 m away from the measuring point.
- Protection class IP66 for indoor and outdoor installations.
- Extremely wide frequency range from 2,4 GHz to 6 GHz.
- Microwave frontends are specified for a temperature range from -20 to +70 °C.
- Certified for ATEX zone 22, optionally for zone 21 on request.
- High measurement accuracy is ideal for closed loop control purposes.
- Accuracy and long-term stability are significantly better compared to standard microwave moisture meters.
- Meets all necessary regulations for Europe, USA and Canada according to CE, ETSI, FCC and RSS.
- Small samples with a size down to 100 mm.
- Thin material layers, e.g. gypsum boards.
- Extremely thick layers, for e.g. silo outlets with a width of up to 2 m.
- Liquids in tanks and pipes.
