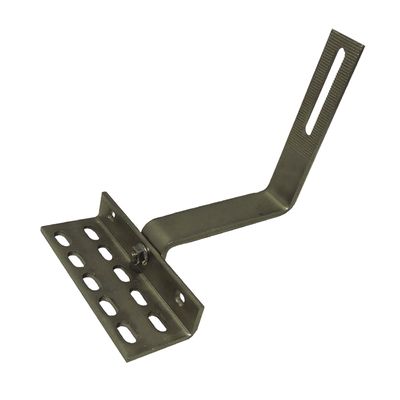

Model PN: 17700 -Height Adjustable All Tile Roof Hook for Side Mount Rails

90° All Tile Roof Hook 5-3/4" Arm, 8mm Height Adjust Range - for Curved & Flat Tile Roofs - works with or without battens 10/Carton Wgt = 19.00 Lbs. The longer arm fits a wider variety of tile styles. The base has three leverage points of adjustment, thus flexibility for the installer when mounting to the roof. The 10mm x 46mm rail slot accepts 5/16" or 3/8" bolts. Use our 1/4" or 5/16" Screws in the 9mm x 18mm slots.
