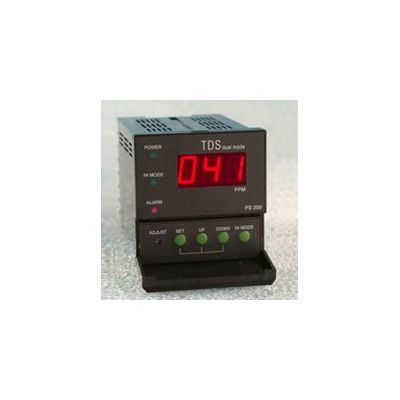

Model PS-200 -Dual TDS Controller
FromHM Digital, Inc.
Install the Dual TDS Controller to constantly monitor TDS levels of water produced by a high-output system. Immediately know if the TDS levels rise above an acceptable level.
Most popular related searches
TDS control
TDS controller
TDS level
TDS
feed water
solenoid valve
TDS water
TDS monitor
TDS monitoring
pump control valve
- Monitors and controls TDS levels of two water lines (e.g., feed water and product water) for high output commercial systems.
- Large, bright L.E.D. display.
- An alarm will sound if the TDS level rises above the user-set level for the output water.
- Installs easily in minutes.
- Includes two sensor probes (at no extra cost).
- The PS-200 is a monitor for Line 1 (in-line) and a controller for Line 2 (out-line).
- Range: 0 - 999ppm
- Accuracy: ±2%
- Conversion Factor: NaCl (avg. 0.5)
- Resolution: 1 PPM
- ATC: Yes (1 - 65 degrees Celsius)
- Calibration: Adjustable
- Setting: Controlled by on-screen up/down buttons
- Relay Control: The unit will open or close a circuit via dry contacts when the ppm level (out line/line 2 only)reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device. (In line/Line 1 does not have a control function)
- Relay Voltage: 5V (simple switch)
- Alarm: Optional steady beep for Out line/Line 2 (set by user)
- Display: Bright 5/8" L.E.D. display
- 2 Probes: 1/2" bushing, 3 meter (9.8 ft) shielded cable
- Power supply: AC 110V / AC 220V
- Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
- Monitor Weight: 476 g (1 lb .8 oz)
- Total Weight: 822.1 g (1 lb 13 oz)
