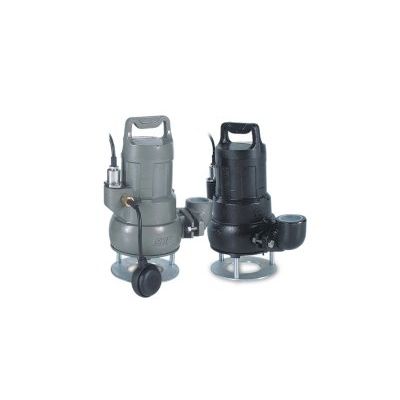

Model PSO Series -Submersible Wastewater and Drainage Pumps

• Capacity (Q) : Upto 25 m³/h
• Manometric Height (Hm) : 12 mWC (vortex), 20 mWC (grinder)
• Operating Temperature (t) : Upto 40 °C
• Operating Pressure (Pmax) :

They are produced as 2 types with vortex impeller and with grinder. The types vortex impeller are the most economical portable pumps which can be used to pump sewage without fibrous particles, such as rain water.

The ones with grinder can be used for sewage and reservois that include fibrous particles in addition to the areas of use explained above. Both type can be manufactured in bronze body for highly corrosive environment on demand.

Sep drainage pumps are suitable both for industrial and mechanical seal. They are produced with thermic relay against overheating due to impeller blocking and dry running. All types are rewindable.
