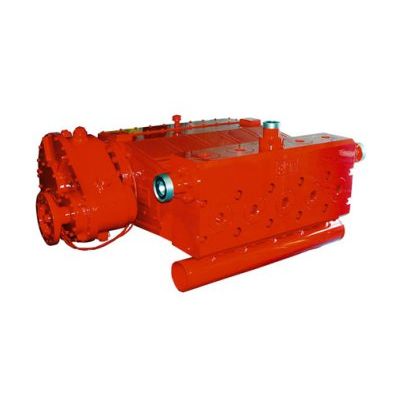

Model QWS 1000S -Well Service-Stimulation Pumps
The QWS 1000S offers a similar design as the TWS 600S with its small footprint, but offers a larger power output. The QWS 1000S can also be set up in the back-to-back configuration to perform acidizing, cementing, gravel packing, and snubbing operations.
Most popular related searches
Applications: Cementing, Acidizing, Gravel Packing, Snubbing.
Features / Benefits
Rated Max Brake HP: 1,000 BHP (746 Kw)
Maximum Rod Load: 100,000 Lbs. (45,359 kg)
Stroke Length: 6" (152.4 mm)
Gear Ratio: 4.61:1
Length: 50" (1,270 mm)
Width: 73" (1,854 mm)
Height: 24" (609 mm)
Weight Dry (Approx.): 7,040# (3,193 kg)
Pump dimensions are approximate. For full detailed drawings, please contact Weir SPM Engineering.
