Model RDM 2000-SD -Packaging Machine
FromJR MARUANI

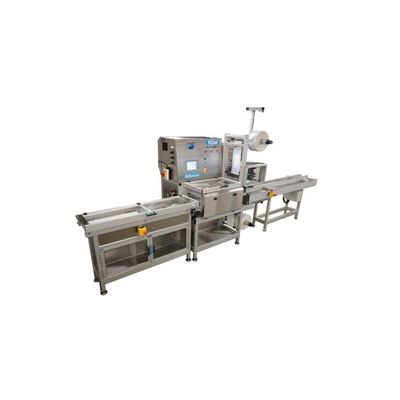

The RDM 2000-SD is a machine designed for the packaging of single use products into 4 side-seal pouches. The range of packing material supported is comprehensive: papers, aluminum & plastic foils. Human interface is through a large colored tactile screen which allows programming of sealing parameters and reports any fault conditions. The machine is fully auto-controlled with automatic cycle interruption when an alarm threshold is crossed. This continuous running machine is fully driven by SIEMENS brushless motorization.
Most popular related searches
Features:
- Length of pouches adjustable from 80 to 2 000 mm through tactile screen,
- Width of pouches adjustable from 60 to 220 mm (or 320 or 450 mm)
- Height of product up to 25 mm
- Production rate up to150 cycles/minute & per lane
- 100% Made in France – Conformity CE
Included Equipment:
- Direct access calibration connectors
- Peel open flap
- Photocell for pre-printed material
- Sealing tools for specific shapes if required
- Digital display of sealing pressure
- Pneumatic mandrel for tension control of material
- Hygienic loading table: with pushers or with direct loading onto the lower web of
- material.
