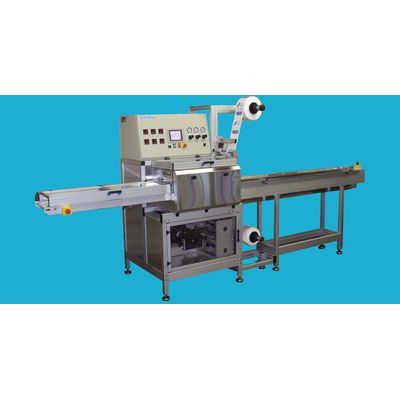

Model RDM-D -Horizontal Form Fill Seal Machine
FromJR MARUANI
Horizontal Form Fill Seal machine, specially designed for automatic pouching of flat items in four side seals pouches from 2 rolls of thermosealable materials. All elements are driven by servomotors. Tactile screen interface with operator.
Most popular related searches
Characteristics :
- Adjustable length from 80 up to 2 000 mm, through tactile screen
- Adjustable width from 60 to 220 mm (320 mm W version), by adjustment of tooling
- Production rate up to 125 cycles/minute, 20 meters/minute
- Product height up to 20 mm
- Diameter of reel up to 400 mm
- Overall dimension : L. 3m50 x W. 1m50 x H. 1m90
Options : Flexographic or other printing systems, easy peel open device, double registration, possibility to work with polyethylene, synchronisation with production machine, and other on request.
