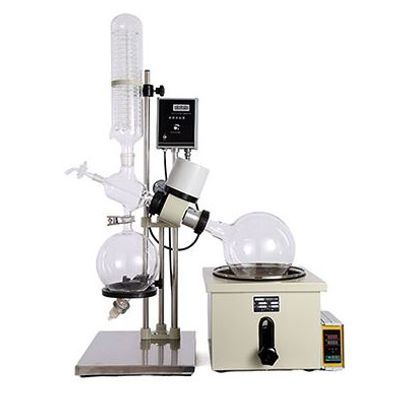

Model RE-301 - Rotary Evaporator Kits

Model RE-301 -Rotary Evaporator Kits

FromKeda Machinery Equipment Co., Ltd.

SHARE

Quick and easy lifting mechanism. The evaporator can be tilted horizontally in the range of 0-45°. High evaporation rate of the vertical condensation system. PTFE evaporating pipe, good sealing and heat-resisting. Joint part is sealed Fluorine rubber mat which brings good performance. Automatic temperature control digital display. GG-17 high borosilicate glass evaporating flask and receiving flask. 110 V/60HZ can be customized.

Most popular related searches

rotary evaporator

diaphragm vacuum pump

evaporation rate

evaporator system

digital temperature controller

rubber flooring sheet

borosilicate glass

constant temperature bath

For the perfect use of the entire rotary evaporator system you may need the following equipment

Circulating vacuum pump
Diaphragm vacuum pump
Low temperature coolant circulation pump
Low temperature constant temperature reaction bath
Circulating cooler
Constant temperature circulator
Low temperature circulation pump

After sale

1 year warranty service and all life maintenance.
Technical Egineer are avalible for oversea trainning.
Free change for some parts
Remote control technical consult
Free installation DVD
Maintenance plan

Rotating Flask（L） 3
Collection Flask（L） 2
Rotating Motor（W） 40
Rotating（R/min） 0-120
Water（Oil）Bath Power（W） 1500
Temp Control Mode/Range（℃） RT-399
Temp Resolution（℃） ±1
Evaporation Rate（L/H2O） ≥1.5
Max Vacuum Degree ＜133pa
Lifting Height(mm) 0-120
Water Bath Size(mm) Φ26*15
Condenser Vertical with charge pipe，Large Condenser，evaporating pipe
Lifting Mode Water/oil bath Manual Lifting
Voltage 220V/50HZ
Sealing Mode PTFE，fluoro rubber sealing
