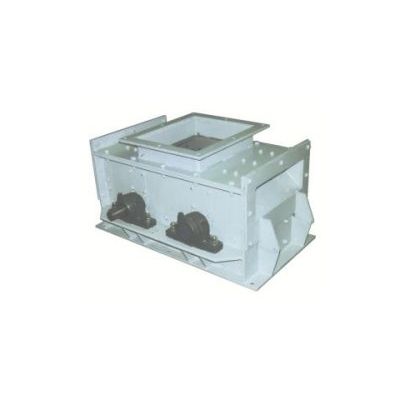

Model RH - Twin Rotor Sample Crusher
From Samplers
Due to its compact size and sympathetic design, the RH Crusher is ideally situated to duties in sampling systems. The RH Crusher reduces particle size by use of two high speed rotors each with two sets of tri-lobed hammers. The hammers break the feed lumps sufficient to pass the sizing grids fitted to the crusher base. Independently driven and counter-rotating, the rotors draw the feed into the crushing chamber and impact the feed lumps from both sides.
-
Most popular related searches
Main Features:
- The tri-lobed hammers are designed to present the heaviest section for crushing impact. Hammer wear is equally spread between the lobes.
- Because the feed is impacted from both sides in free fall by the hammers and are particle against particle, the risk of blockage when crushing damp or sticky material is eliminated and full capacity is maintained.
- Hinged doors either side of the crusher, which are designed to give access to the impact hammers and sizing grates during inspection and maintenance operations, incorporate secondary breaker plates. The access doors can be fitted with quick release catches and safety interlocks if required.
- Compact construction.
- High crushing capacity.
- Crushes sticky material without blockage.
- Selectable aperture discharge grates.
