Model RIT -Recycling Timer

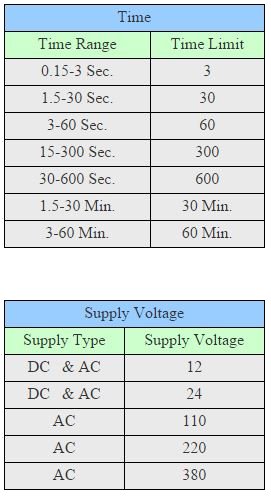

ON timer starts timing, relay opens and ON signal gets ON as soon as supply is connected to terminals A1 and A2 (internal contact of terminal 15 to 18 is made). At the end of time adjusted by T.ON potentiometer handle, ON signal gets OFF, OFF signal gets ON and internal relay closes (internal contact of terminal 15 to 16 is made). At the end of time adjusted by T.OFF potentiometer handle, ON signal gets ON, OFF signal gets OFF and internal relay opens (internal contact of terminal 15 to 18 is made). As long as supply is connected and has not dropped more than 40%, energization and de-energization cycle repeats.
