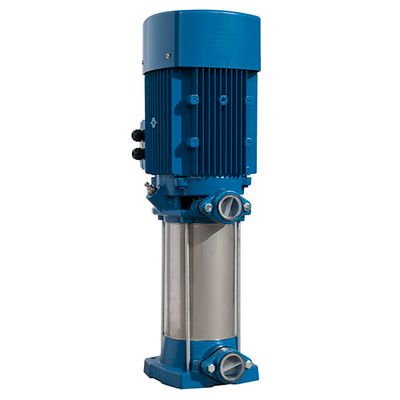

Model ROMA11-21 -Vertical multicellular centrifugal electro-pumps
Suitable for installations in booster sets, fire-fighting equipments and VFD equipments thanks to their position and small size.
Most popular related searches
fire fighting system
vertical pump
fire fighting
multicellular centrifugal pump
vertical centrifugal pump
vertical centrifuge
centrifugal pumping
centrifugal pump
multicellular pump
centrifuge
TECHNICAL CHARACTERISTICS
- Type: Multistage
- Flow (l/h): 500 - 19800
- Head (m): 10 - 140
- IP: 55
- Isolation: F
- r.p.m.: 2850
- Cooling: External ventilation
- Temp. max. (ºC): 50
- Max. suction depth: 6 m.
- Impeller: Closed
MATERIALS
- Pump body: Cast iron
- Suction body: Cast iron
- Housing: ‘AISI 304’ Stainless steel
- Impellers: ‘AISI 304’ Stainless steel
- Diffusers: Polycarbonate with glass fiber
- Shaft: ‘AISI 304’ Stainless steel
- Mechanical seal: Silicon Carbide/Graphite/Viton/AISI 304
- Plugs: Brass
- O’rings: NBR
Note: All models are supplied with their corresponding oval flanges DIN 2558, screws and joints.
