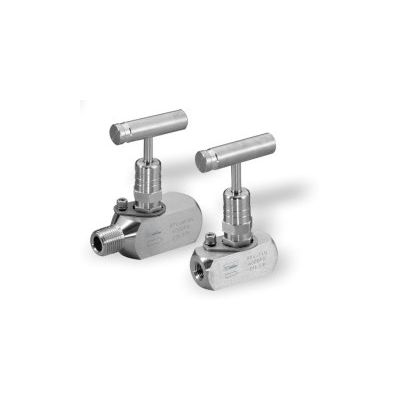

Model RP Series - Rising Plug Valves



Pressure rating to 6,000 psi (413 bar) at 100°F (38°C). Temperature rating from -20°F to 250°F (-29°C to 121°C) with PCTFE seat standard, and up to 400°F (204°C) with optional PEEK seat. Stem seal below threads to keep threads clean. Non-rotating stem tip minimizes seat wear-out. Robust body design with safety bonnet locking plate. Orifice in straight flow path ensures max CV. PCTFE seat standard, PEEK available. Sour gas service available. Gauge port option available. A Variety of end connections include male/female NPT, ISO, BSP threads and female Hy-Lok tube fittings. Body Material is available is 316 stainless steel standard.
