Model RSR -Rotary Jet Cleaner

Size: DN 150 (DN 200) *

Material: Stainless steel A2-1.4301 (A4-1.4571) *

Rot.range: 360° – rotating

Pump: Manufacturer-independent, flange-mounted or offset mounted

Circulation: Up to 300 cbm/h

Rated power: 4,9 – 22 kW

• Automatic cleaning and flow generation in stormwater basins to ensure the long-term operation of the plant.
• The generated flow effectively prevents the settling of non-floating solids
• Consistent dirt discharge over the entire emptying phase
• Effective cleaning of the basin floor, the basin walls and any pillars
• Minimization of odor and putrefaction in impounded wastewater through oxygen input
• Also ideally suited as a retrofit for already existing basins

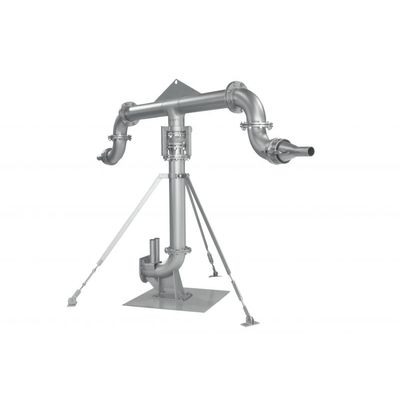

The rotary jet cleaner works according to the recoil principle. The 2-armed cleaner rotates 360° around its own axis and can be easily mounted on the bottom of the basin or by a bracket above the channel. The movement is realized by the flanged, insulated stainless steel swivel joint. The cleaning medium is waste water, which is taken from the middle sump by a pump. By means of the specially developed, adjustable blasting nozzles in combination with the rotating movement of the jet, exceptional cleaning performance is achieved. The rotation speed can be flexibly changed by adjusting the nozzles Especially in rainwater basins with round, square or polygonal shape, the rotary jet cleaners develop their full efficiency.
