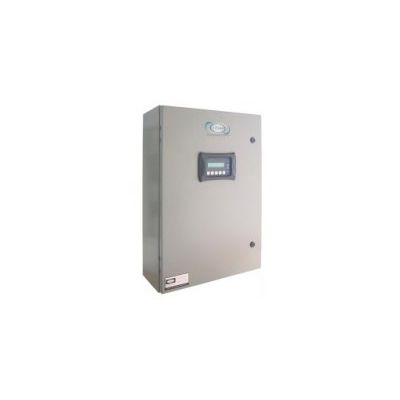

Model RTU2000 -PLC Based Remote Telemetry Unit (RTU) Control Panel

The RTU2000 is the answer that all engineers and municipalities have been searching. There is no longer a need to come up with custom installations at each remote site. The RTU2000 will revolutionize the municipal waste water industry by providing a single solution for all sites, thus eliminating the many unreliable, assorted mix of RTU variations built by a range of different contractors with limited expertise and a vast range of workmanship and quality. The RTU2000 not only provides reliable communication, it also sets a standard of quality. Owners and Operators will appreciate the consistent quality and functionality of each site. The RTU2000 is modular and configurable for a wide variety of applications and needs. You can select the necessary options for your applications; please refer to the Ordering Information.

The RTU2000 is capable of monitoring both discrete and analog data, alarming, and controlling remote systems. Examples of data that can be transmitted:

• Lift Station Pump On/Off Status
• Lift Station Pump Failure Conditions
• High Level Alarms
• Actual Analog Levels
• Power Failure
• Flow Rates
• Peripheral Equipment Status (such as a generator)

Many existing RTU suppliers produce proprietary systems, locking the user into communication options and components that are not widely available. The RTU2000 is built on an ‘open architecture’ format. The panel is fabricated with off-the-shelf parts from major manufacturers. Replacement parts and service can be procured from many local distributors and suppliers.

A non-licensed (spread spectrum), licensed radio, or other communication devices such as phone modem, or ethernet, is used to transmit all data back to a Master System. This allows communication from remote sites such as Lift Stations or other unmanned systems. Special adapters can be provided to allow communication with existing systems. Additional Capabilities Include:

• Control of a Local System
• Variable Frequency Drive Control
• Calculation of Run Hours
• Operator Display can be used to view

all information and to send/receive test signals to Master Site for verification of communications

Each RTU2000 is furnished complete with a PLC program configured for the specific application requested by the customer. The RTU2000 will collect and re-transmit the data for the specific installation right out of the box. A simple RTU configuration sheet can be completed by the user upon equipment order. The RTU2000 can be configured to integrate and properly communicate with existing telemetry systems. A total system retrofit is not necessary to utilize the RTU2000.

Accessories / Optional Services Available:

• Site Path Study
• Antennas
• Towers and Poles
• Startup Services
• Installation Services
• Special Programming
• FCC License Processing
• Communication Adapters

• Enclosure: Carbon Steel (NEMA 4) or Stainless Steel (NEMA 4X), lockable
• Text Display: Two-Line LCD display with LED Backlight and Flash Memory Card, Nema 4/4X for
• Indoor use (use optional swing cover or interior swing panel for outdoor use)
• Incoming Power: 120VAC, 0.9 amps
• UPS (optional): 350VA, provides ~30 minute runtime
• PLC: 6K words of CPU Memory, EEPROM program backup, 100% data retention,
• Two communication ports
• Inputs: Quantity of 14 – 120VAC Discrete as standard, more can be added with optional
• cards, 4-20millilamp Analog optional
• Outputs: Quantity of 10 – Relay Contacts rated 120VAC Discrete as standard, more can
• be added with optional cards, 4-20millilamp Analog optional
• Surge Suppressor: 45KA surge capacity, High Frequency Noise Filtering, LED power indication,
• UL 1283
• Communications: Radio Modem, Ethernet, Modbus Master/Slave, others upon request
• Weight: Approx. 85 lbs. (39 kg)
• Approvals: UL 508A, CUL 508A
