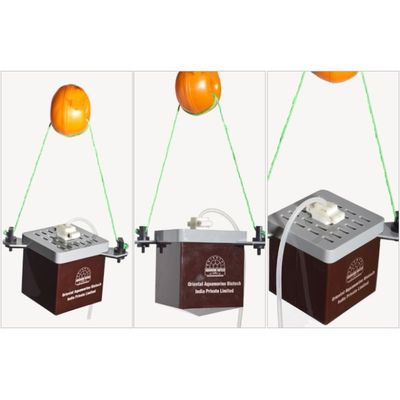

Model SBSBR -In-Situ Stringed Bed Suspended Bioreactor

On suspending the reactor one foot below the water level on a float, and operating the airlift pump, water enters the reactor through the perforations on top of the black lid, passes through the cartridge and flows out. When water comes in contact with the immobilized bacteria on the surface of the beads, nitrification takes place and dissolved ammonia in the water is converted to nitrates and subsequently into elemental nitrogen and oxygen. The framework of the inner cartridge is made in such a way that larvae, plankton, and food particles when enters, pass out through the airlift pump without mutilation and damage.Stringed Bed Suspended Bioreactor contains 1001 beads with a surface area > 684cm².
